 Honda CX 500 first Café build

Go down
Go to page : Previous  1, 2, 3, 4, 5 ... 11, 12, 13  Next
AuthorMessage
devonrider



Posts : 35
Join date : 2011-05-12

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptySun Jul 10, 2011 1:00 pm

IED wrote:
That is sweet mate, but I was thinking of going black on the motor, not silver Very Happy

Nooooooooooooooooo Mad

Look, it's clear to me that you do not need advice from anyone, least of all me, but I really do think you're going to end up ruining the whole project if you do that.
Your engine looks crisp with just the right amount of patina.
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptySun Jul 10, 2011 2:06 pm

I'll have a little think about it matey.

Oh and I do thank you for the positive input fella, you might be right.
Back to top Go down
View user profile
devonrider



Posts : 35
Join date : 2011-05-12

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptySun Jul 10, 2011 7:07 pm

IED wrote:
I'll have a little think about it matey.

Oh and I do thank you for the positive input fella, you might be right.

Well it's just my opinion.
When you've become bored with it and decide to move onto another project and sell that gem to me, Iwant it with the original finish on the engine. bounce
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptySun Jul 10, 2011 10:27 pm

lol! oh I see, you have a hidden motive.

Ok mate, you got first dibs
Back to top Go down
View user profile
devonrider



Posts : 35
Join date : 2011-05-12

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyMon Jul 11, 2011 7:04 am

bounce bounce
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyMon Jul 11, 2011 3:49 pm

I've had a good day today.

Work was ok, then I got home to find my O ring set had arrived

Honda CX 500 first Café build - Page 4 Img00519

Porky dropped off his mig welder

Honda CX 500 first Café build - Page 4 Img00520

So I choped of the mangled head on the oil filter bolt and welded a new, bigger and better bolt head onto the stem

Honda CX 500 first Café build - Page 4 Img00521

Yup, been a good day.

I'll start on my frame mods tomorrow.
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyTue Jul 12, 2011 3:22 pm

Welding again tonight Very Happy

I started by putting the plywood base from the plug I made on the frame and making a card template of the bracket I want to make.

Honda CX 500 first Café build - Page 4 Img00522

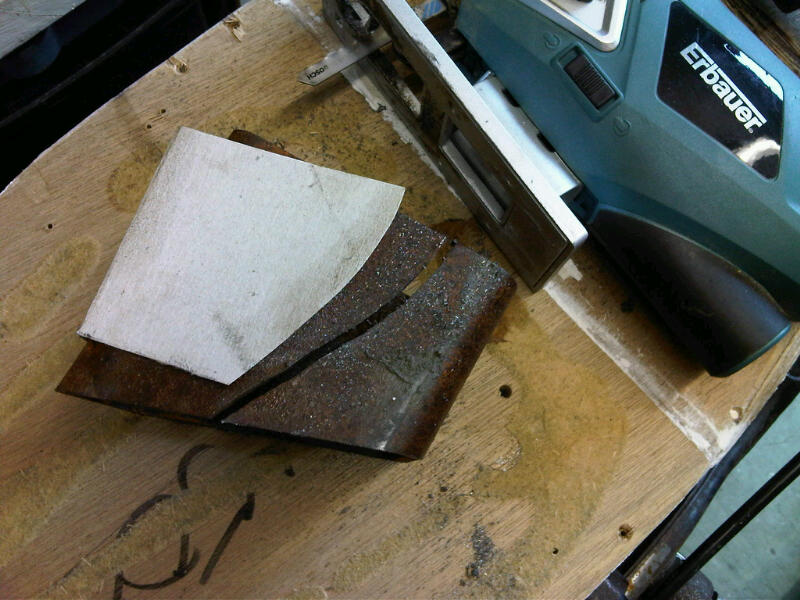

Next I used the card template to mark up my steel angle, then put a hacksaw blade in my jigsaw to allow it to cut a curve.

Honda CX 500 first Café build - Page 4 Img00523

The rest of it I cut out with my mini grinder

Honda CX 500 first Café build - Page 4 Img00524

smartened that up no end.

Honda CX 500 first Café build - Page 4 Img00525

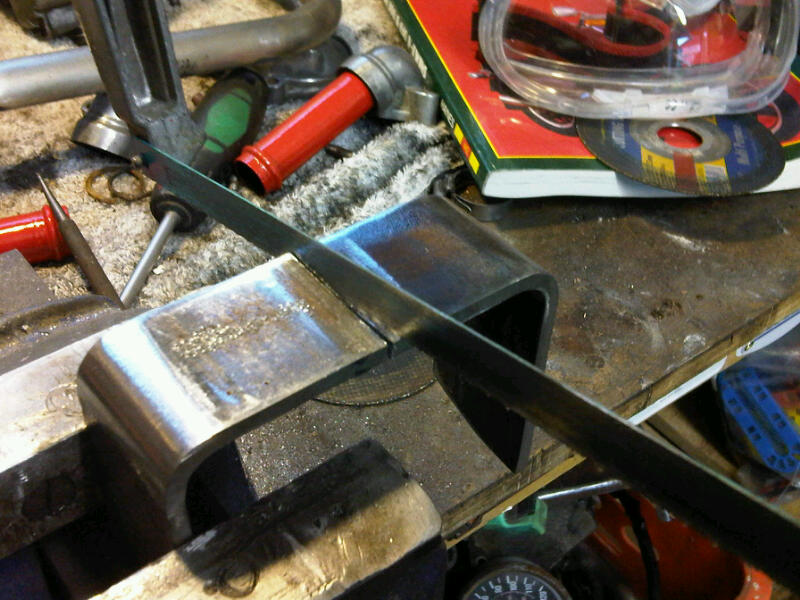

Now the two halves get seperated.

Honda CX 500 first Café build - Page 4 Img00526

and one gets welded on.



Honda CX 500 first Café build - Page 4 Img00527
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyTue Jul 12, 2011 3:32 pm

Next I leveled the frame by putting packers under the center stand.

Honda CX 500 first Café build - Page 4 Img00528

And kept checking the level of the frame untill I got it right.

Honda CX 500 first Café build - Page 4 Img00529

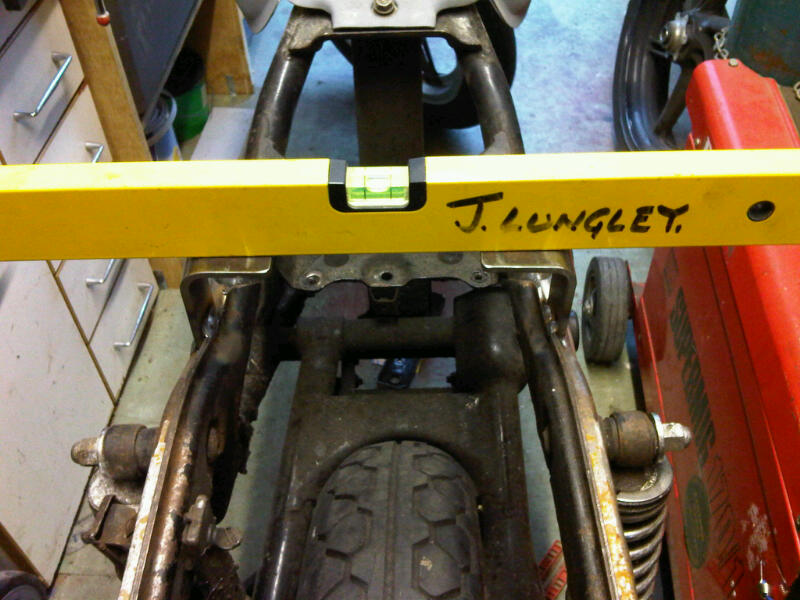

Once I was happy the frame was ok, I tacked on the other side, and leveled it in.

Honda CX 500 first Café build - Page 4 Img00530

So far so good.
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyTue Jul 12, 2011 3:48 pm

So both supports are on, and when I have made my seat I will drill and tap holes in the mounts to screw it down to

Honda CX 500 first Café build - Page 4 Img00531

I used the mould to mock up with

Honda CX 500 first Café build - Page 4 Img00532

and give me a line to cut back the sub-frame rails to.

Honda CX 500 first Café build - Page 4 Img00533

I'm going to mount the battery in between them.

Honda CX 500 first Café build - Page 4 Img00534

Look at all that space under there.

Honda CX 500 first Café build - Page 4 Img00535

More tomorrow night.
Back to top Go down
View user profile
Pud

Pud

Posts : 359
Join date : 2011-06-06
Age : 52
Location : weeley, Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyTue Jul 12, 2011 9:05 pm

looking great wish I had your drive by the time I get in from work I'm to knacked to go out and do any thing. mind you I have realized what I was doing wrong with my seat and why I couldn't get it to look right for any body else puting a seat on there bike from another model the highest point of the seat should be the same height as the tank will show what I mean in my build log
Steve
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyTue Jul 12, 2011 10:43 pm

Its not drive mate, its big fun cheers and I'm always up for having fun fella. While I'm having fun, I'm planning tomorrows fun, lol. Smile

If you ever need an extra pair of hands fella, or a bit of help just give me a call on 07962723617

Looking forward to seeing your seat matey.
Back to top Go down
View user profile
Animal_Mother

Animal_Mother

Posts : 39
Join date : 2011-07-09
Location : North Wales

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 5:13 am

Are you going to hide the battery and all of the other electrics under there like this chap did?
http://www.thegsresources.com/_forum/showthread.php?t=138693&highlight=katana+cafe
Back to top Go down
View user profile http://www.triumphtorque.com/
pauliexjr

pauliexjr

Posts : 782
Join date : 2011-02-08
Location : Livingston

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 10:16 am

I was looking at hiding my electrics in the tailpiece of my CB, but there's still an oil tank sitting under the side panels so it's kind of pointless :-(
Back to top Go down
View user profile
Pud

Pud

Posts : 359
Join date : 2011-06-06
Age : 52
Location : weeley, Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 11:25 am

On your CB why not hide electrics under seat hump and nake a central oil tank like a triton.
Steve
Back to top Go down
View user profile
pauliexjr

pauliexjr

Posts : 782
Join date : 2011-02-08
Location : Livingston

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 12:27 pm

Pud wrote:
On your CB why not hide electrics under seat hump and nake a central oil tank like a triton.
Steve
Actually Steve that's not a bad idea, Unity Equippe do a couple of very nice alloy jobs for the Triton, I'm sure there's enough space, it would be a question of the hose take offs, there's 2 on the Honda, need to talk to Unity methinks!
Back to top Go down
View user profile
Pud

Pud

Posts : 359
Join date : 2011-06-06
Age : 52
Location : weeley, Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 12:39 pm

most Triumph oil tanks have two pipes one feed and one return well three if you include the breather Smile
Steve
Back to top Go down
View user profile
Pud

Pud

Posts : 359
Join date : 2011-06-06
Age : 52
Location : weeley, Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 1:10 pm

IED if you look at the following link you will see the seat unit and my inspiration

http://caferacer.forumotion.com/t152-my-xj600-project

cheers
Steve
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 2:43 pm

Tonight I got in and made a start on the battery box.

I want it mounted under the pod so I can keep the area behind the engine clean and clear.

I'm using angle section and cuting it inbetween the frame

Honda CX 500 first Café build - Page 4 Img00536

After a bit of measuring and leveling I taped the first bit into place

Honda CX 500 first Café build - Page 4 Img00537

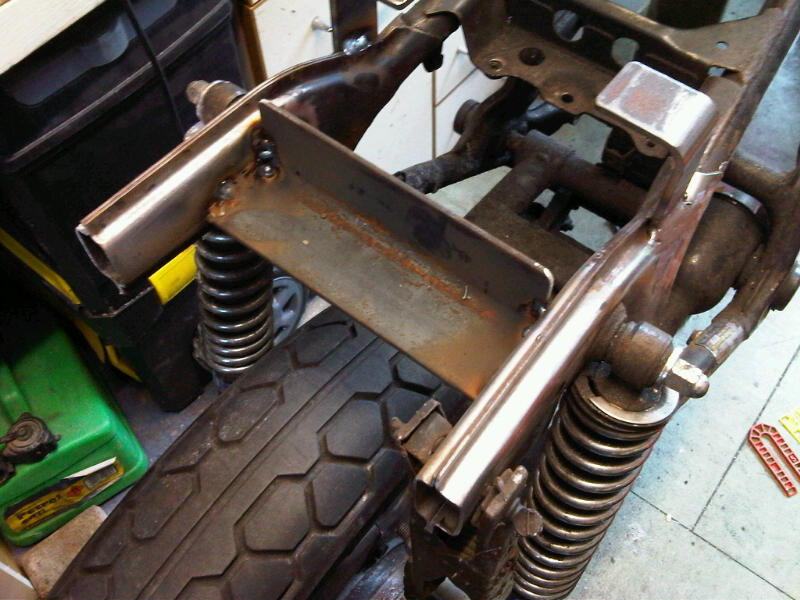

Then tacked it

Honda CX 500 first Café build - Page 4 Img00538

The other side was made the same way, and welded to the frame and the other section.

Battery sat in there nice, with space for a little foam rubber to protect my battery from the frame.

Honda CX 500 first Café build - Page 4 Img00539

I moved the bike outside to get a better look at it.

Honda CX 500 first Café build - Page 4 Img00540

The battery sits under there a nice snug fit

Honda CX 500 first Café build - Page 4 Img00541

I then cut a couple of plugs to go over the ends of the frame

Honda CX 500 first Café build - Page 4 Img00543

Got them in and ground to fit.

Honda CX 500 first Café build - Page 4 Img00544

The battery look really high sitting in the box,

Honda CX 500 first Café build - Page 4 Img00545

But its not an issue

Honda CX 500 first Café build - Page 4 Img00546

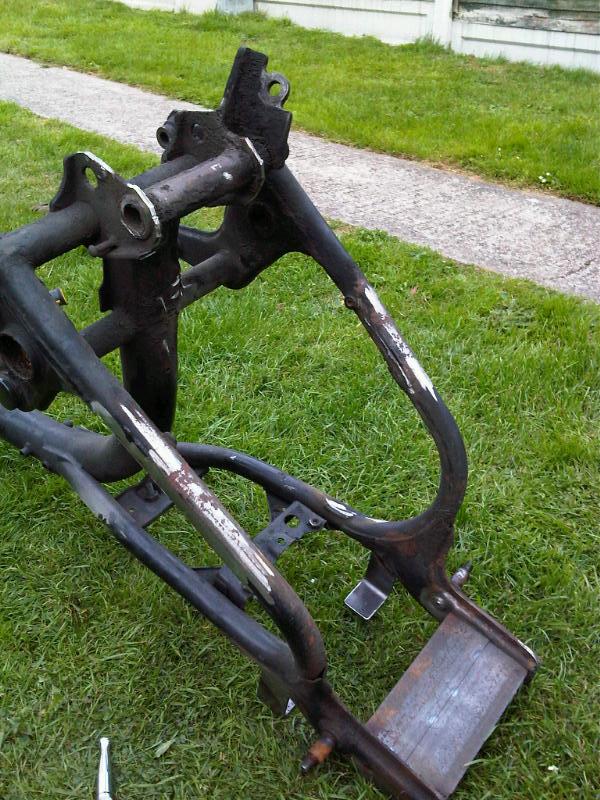

Thats that then. Now I can break down the frame and grind off any lugs that are not needed.

But before I do anything, I'm gonna clean up this mess.

Honda CX 500 first Café build - Page 4 Img00547
Back to top Go down
View user profile
devonrider



Posts : 35
Join date : 2011-05-12

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 3:05 pm

I find myself getting excited over this and it's not even my bike.
Are you going to powder coat the frame etc ?
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 3:33 pm

Yup, frame will be going to Impact coatings in Colchester Essex in a couple of weeks mate.

What colour do you want it lol!
Back to top Go down
View user profile
Pud

Pud

Posts : 359
Join date : 2011-06-06
Age : 52
Location : weeley, Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 8:15 pm

are impact going to blast the frame first then coat it, what did they estimate the price as I contacted a firm in Clacton and they wanted approx £200 to blast and powdercoat silver my sons frame for his 125,also battery carrier looks good what means are u going to use to secure it in the carrier.
Steve
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyWed Jul 13, 2011 10:02 pm

Impact coatings quoted me £75.00 to blast and powdercoat the frame and swing arm, and I guess the engine mounts will be extra, so I guess around a 100 quid for the lot matey.

I think I might use a rubber strap like on my blade to hold the battery in mate.
Back to top Go down
View user profile
pauliexjr

pauliexjr

Posts : 782
Join date : 2011-02-08
Location : Livingston

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyThu Jul 14, 2011 12:12 am

I had my frame and swinging arm blasted and powder coated by a local guy who refurbs wheels, cost me 120 quid (100 for the frame, 20 for the arm) must admit I'm very pleased with it, just wish now I'd had it done in silver rather than black!
Back to top Go down
View user profile
devonrider



Posts : 35
Join date : 2011-05-12

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyThu Jul 14, 2011 1:13 pm

IED wrote:

What colour do you want it lol!

Deep red please

bounce bounce
Back to top Go down
View user profile
IED

IED

Posts : 199
Join date : 2011-06-04
Age : 57
Location : Harwich Essex

Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 EmptyThu Jul 14, 2011 1:54 pm

To shave a few lbs and up the power to weight ratio, the center stand has got to go, and as much of the mount I can chop without weakening the side stand mount.

Honda CX 500 first Café build - Page 4 Img00548

some of it was a bit awkward to get to, but I managed to tidy it up with my mini grinder.

Honda CX 500 first Café build - Page 4 Img00549

Next I droped out the swing arm

Honda CX 500 first Café build - Page 4 Img00550

Next I ground off any redundant mounts to clean up the frame.

Honda CX 500 first Café build - Page 4 Img00551

There we are then, next I'll drop out the front end and the frame will be ready for powdercoat.

I dont have anything to do to the swing arm except remove the shaft drive dif.

While the frame is away I can get on with renovating the diff, the carbs, the forks............... well you get the idea, still loads to do.

Honda CX 500 first Café build - Page 4 Img00552
Back to top Go down
View user profile
Sponsored content




Honda CX 500 first Café build - Page 4 Empty
PostSubject: Re: Honda CX 500 first Café build   Honda CX 500 first Café build - Page 4 Empty

Back to top Go down

Honda CX 500 first Café build
Back to top
Page 4 of 13Go to page : Previous  1, 2, 3, 4, 5 ... 11, 12, 13  Next
 Similar topics
-
» MTD Trail Runner Build.
» honda atc 500r
» Baja Mini Bike Build
» 2 Honda xr80's for sale
» Custom Chassis Build Thread

Permissions in this forum:You cannot reply to topics in this forum
Cafe Racer Forum  :: Cafe Racer projects-
Jump to:
